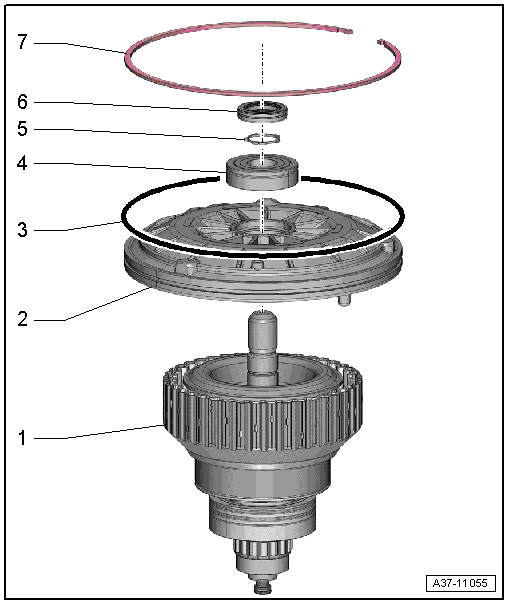

Overview - Input Shaft
WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.
- Input Shaft
- Refer to INPUT SHAFT, REMOVING AND INSTALLING
- Cover
- For the input shaft
- Refer to INPUT SHAFT COVER, REMOVING AND INSTALLING
- O-ring
- Always replace
- Ball Bearing
- For the input shaft
- Refer to INPUT SHAFT BALL BEARING, REPLACING
- Circlip
- Always replace
- Measuring
- Shaft Seal
- For the input shaft
- Refer to INPUT SHAFT SEAL, REPLACING
- Circlip
- Different versions, always replace
- Determine thickness. Refer to Installing .
