Input Shaft Ball Bearing, Replacing

WARNING: This page is about a different car, the 2014 Audi A5, 2013 Audi A5, 2012 Audi A5, and 2011 Audi A5. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Press Plate :VW401
Press Piece - 37mm :VW416B
Press Piece - Trailing Arm :2010
Pressure Stand :T40099

CAUTION:

This procedure contains mandatory replaceable parts. Refer to component overview and parts information prior to starting procedure.

Mandatory Replacement Parts

Circlip

Courtesy of AUDI OF AMERICA, LLC

Input shaft cover is removed. Refer to INPUT SHAFT COVER, REMOVING AND INSTALLING .
Adapting the :T40099 for use on the multitronic transmission 0AW FWD. Refer to Pressure Stand .

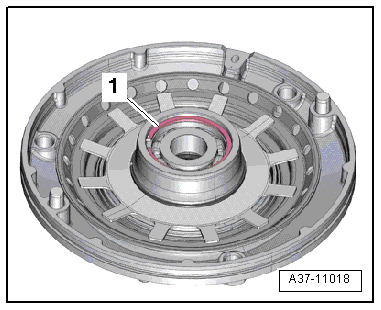

-- Remove the circlip -1-.

-- Measure and note the thickness of the removed circlip.

NOTE:

When installing, the circlip must be replaced with a new circlip with the same thickness.

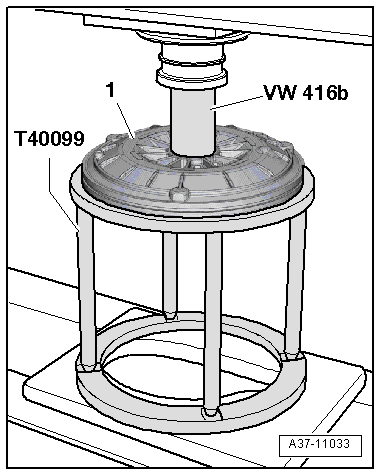

-- Place the input shaft cover -1- on the :T40099 and place it under the hydraulic press.

Courtesy of AUDI OF AMERICA, LLC

-- Pry out the input shaft ball bearing from the input shaft cover using the :VW416B .

NOTE:

In some cases, the input shaft ball bearing can also be pressed out by hand without the hydraulic press.

The input shaft ball bearing must be replaced.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Check the input shaft cover. Refer to INPUT SHAFT COVER, REMOVING AND INSTALLING .

-- Replace the input shaft cover if the contact surface or the cover is damaged.

NOTE:

A new input shaft ball bearing is necessary whenever a new input shaft cover is installed.

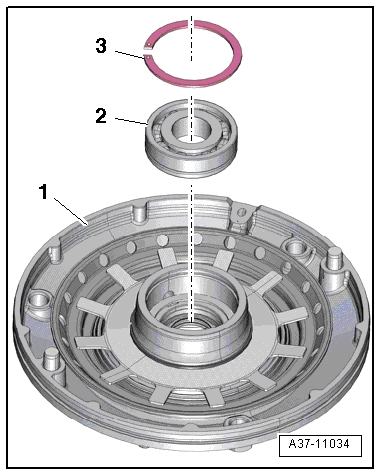

-- Replace the input shaft ball bearing -2- if the contact surface or the cover is not damaged.

Courtesy of AUDI OF AMERICA, LLC

-- Clean the ball bearing seat in the cover.

CAUTION:

Pay close attention to the position of the input shaft ball bearing: the ball bearing cage must face downward in the cover and the open side of the ball bearing must face up. In other words, the balls must be visible in the bearings during installation.

-- Install the ball bearing flush and press in by hand as far as possible.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of damaging the input shaft cover.

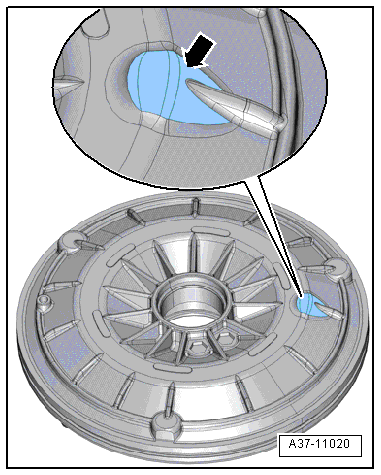

To ensure that the input shaft cover rests evenly on the :VW401 , make sure that the lug -arrow- is in a recess on the press plate.

-- Place the input shaft cover on the :VW401 .

Courtesy of AUDI OF AMERICA, LLC

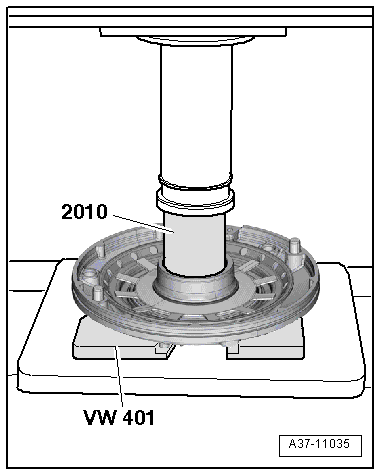

-- Install the input shaft ball bearing all the way in using the :2010 .

-- When installing, the circlip -1- must be replaced with a new circlip with the same thickness.

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the locking ring fits correctly. Install the ball bearing again or use the next thinner locking ring.
