Overview - Heater And A/C Unit, CLIMATRONIC
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
Perform The Following Before Working On The Electrical System:
- Turn off all electric consumers.
- Turn off the ignition.
- Remove the key.
NOTE:
Under certain conditions, the desiccant bag/dryer cartridge no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R1234yf. Refer to REFRIGERANT CIRCUIT .
Under certain conditions, the dryer bag no longer needs to be replaced each time the refrigerant circuit is opened on A/C systems with refrigerant R134a. Refer to REFRIGERANT CIRCUIT .

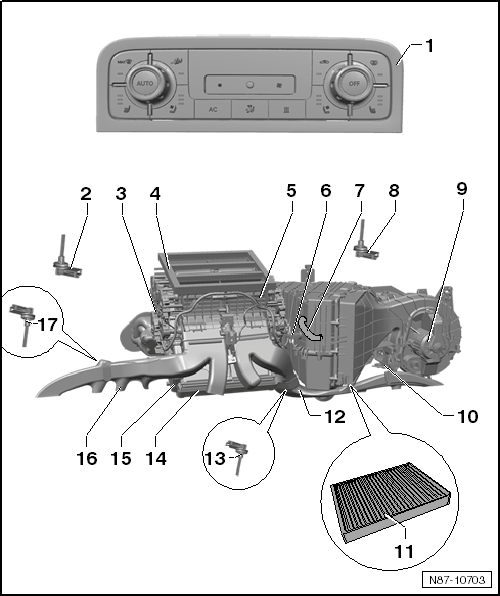

- Front A/C Display Control Head -E87- with Climatronic Control Module -J255-
- Left Front Upper Body Vent Temperature Sensor -G385-
- Removing and installing. Refer to RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G386- AND LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G385-, REMOVING AND INSTALLING .
- Left Actuators
- Arrangement of the control motors at the heating and Air Conditioning (A/C) unit. Refer to OVERVIEW - HEATER AND A/C UNIT ACTUATORS
- Upper Part of the Distribution Box
- Right Actuators
- Arrangement of the control motors at the heating and A/C unit. Refer to OVERVIEW - HEATER AND A/C UNIT ACTUATORS
- Evaporator Temperature Sensor -G308-
- Removing and installing. Refer to EVAPORATOR TEMPERATURE SENSOR -G308-, REMOVING AND INSTALLING .
- Hose for Glove Compartment Cooling
- Right Front Upper Body Vent Temperature Sensor -G386-
- Removing and installing. Refer to RIGHT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G386- AND LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G385-, REMOVING AND INSTALLING .
- Fresh Air Blower -V2-
- Removing and installing. Refer to FRESH AIR BLOWER -V2-, REMOVING AND INSTALLING .
- Fresh/Recirculated Air Door Motor -V154-
- Removing and installing. Refer to FRESH AIR/RECIRCULATING AIR/BACK PRESSURE DOOR MOTOR -V425-, REMOVING AND INSTALLING .
- Dust and Pollen Filter with Activated Charcoal Filter
- Removing and installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
- Front Passenger Side Footwell Vent
- Removing and installing. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
- Right Footwell Vent Temperature Sensor -G262-
- Removing and installing. Refer to RIGHT FOOTWELL VENT TEMPERATURE SENSOR -G262-, REMOVING AND INSTALLING .
- Heat Exchanger
- Removing and installing. Refer to HEATER CORE, REMOVING AND INSTALLING .
- Auxiliary Heater Heating Element -Z35-
Removing and Installing. Refer to AUXILIARY HEATER HEATING ELEMENT -Z35-, REMOVING AND INSTALLING .
- Driver Side Footwell Vent
- Removing and installing. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
- Left Footwell Vent Temperature Sensor -G261-
- Removing and installing. Refer to LEFT FOOTWELL VENT TEMPERATURE SENSOR -G261-, REMOVING AND INSTALLING .
