Overview - Heater And A/C Unit Actuators

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Actuators at the Heating and A/C Unit, Arrangement

NOTE:

A new generation of actuators is installed. These actuators no longer have a potentiometer.

After replacing an actuator, the address for all of the actuators must be adapted again using the Vehicle Diagnostic Tester.

-A- shows the arrangement of the actuators on the left side of the heater and Air Conditioning (A/C) unit.

-B- shows the arrangement of the actuators on the right side of the heater and A/C unit.

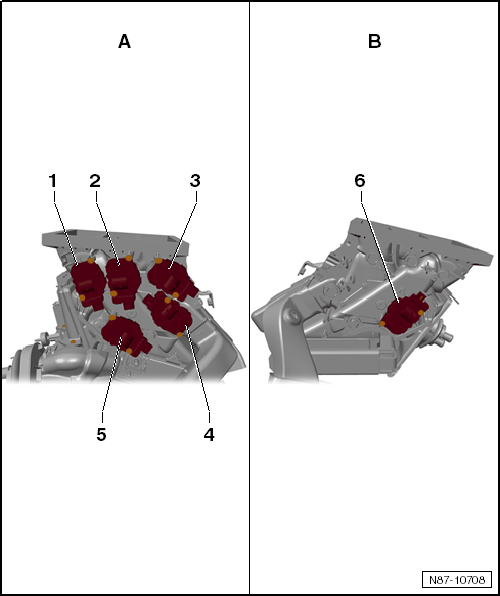

Fig 1: Identifying Door Control Motors Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Defroster Door Motor -V107-
- Removing and installing. Refer to DEFROSTER DOOR MOTOR -V107-, REMOVING AND INSTALLING .
Left Side Vent Motor -V299-
- Removing and installing. Refer to LEFT SIDE VENT MOTOR -V299-, REMOVING AND INSTALLING .
Left Center Vent Motor -V110-
- Removing and installing. Refer to LEFT CENTER VENT MOTOR -V110-, REMOVING AND INSTALLING .
Left Footwell Door Motor -V108-
- Removing and installing. Refer to LEFT FOOTWELL DOOR MOTOR -V108-, REMOVING AND INSTALLING .
Left Temperature Door Motor -V158-
- Removing and installing. Refer to LEFT TEMPERATURE DOOR MOTOR -V158-, REMOVING AND INSTALLING .
Right Temperature Door Motor -V159-
- Removing and installing. Refer to RIGHT TEMPERATURE DOOR MOTOR -V159-, REMOVING AND INSTALLING .

Arrangement of the Indirect Ventilation Door Motor -V213- and the Right Indirect Ventilation Door Control Motor -V453-

NOTE:

The Indirect Ventilation Door Motor -V213- and the Right Indirect Ventilation Door Control Motor -V453- are only installed on vehicles having a second evaporator/heater core.

Installed under the instrument panel on the air channel intermediate piece

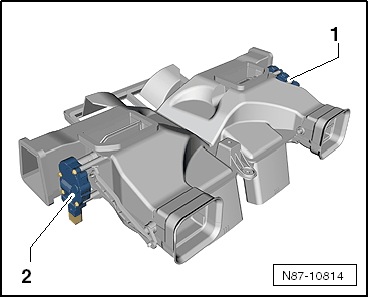

Fig 2: Identifying Air Channel Intermediate Piece

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-1- Right Indirect Ventilation Door Control Motor -V453-, removing and installing. Refer to RIGHT INDIRECT VENTILATION DOOR CONTROL MOTOR -V453-, REMOVING AND INSTALLING .

-2- Indirect Ventilation Door Motor -V213-, removing and installing. Refer to INDIRECT VENTILATION DOOR MOTOR -V213-, REMOVING AND INSTALLING .
