Stabilizer Bar Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with an Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to LIFTING THE FRONT AXLE TO THE CURB WEIGHT POSITION .

Continuation for Both Vehicles

-- Unscrew the bolts -arrows- for the stabilizer bar clamp -1- on the subframe.

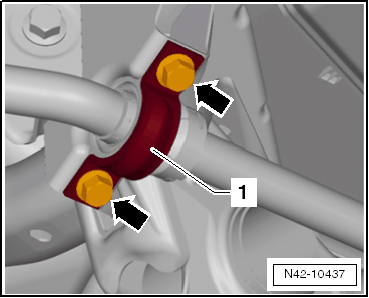

Fig 1: Stabilizer Bar Clamp Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the stabilizer bar clamp.

The Two Mount Halves are Engaged in One Another Via Retaining Tabs.

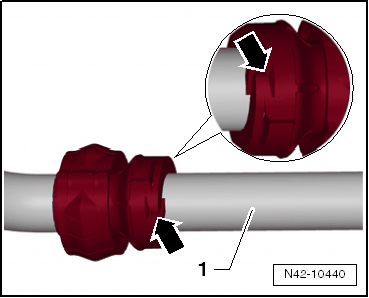

Fig 2: Carefully Unclip Both Retaining Tabs -Arrows- From The Stabilizer Bar Mount -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully unclip both retaining tabs -arrows- from the stabilizer bar mount -1-.
