Stabilizer Bar Mount, Removing And Installing: Installing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Ensure proper seating of the mount halves -1- on the hexagon guide -arrow- of the stabilizer bar.

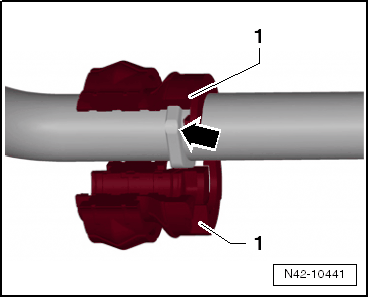

Fig 1: Ensure Proper Seating Of The Mount Halves -1- On The Hexagon Guide -Arrow- Of The Stabilizer Bar.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully press the mount halves together until the tabs engage audibly.

-- Tighten the bolts -arrows- for the stabilizer bar clamp -1- uniformly on the subframe by hand.

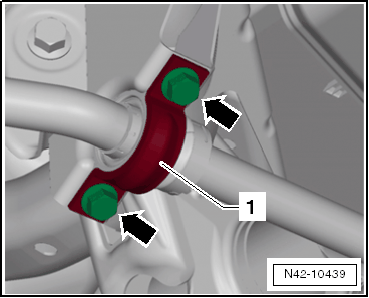

Fig 2: Stabilizer Bar Clamp Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Only Bolt the Stabilizer Rod if the Dimension "a" is Reached. Refer to LIFTING THE FRONT AXLE TO THE CURB WEIGHT POSITION .

-- Uniformly tighten the stabilizer bar clamp on the subframe.
