Coupling Rod, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with a Steel Spring Shock Absorber

Fig 1: Steel Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

-- Loosen the threaded connection -arrows- between the steel spring shock absorber -1- and the coupling rod at the wheel bearing housing.

-- Install the block of wood between the subframe -1- and the upper rear transverse link -2-.

-- Press the axle down with a block of wood.

-- Remove the bolt.

Fig 2: Steel Spring Shock Absorber And Upper Rear Transverse Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with an Air Spring Shock Absorber

-- Activate the vehicle lift mode and place the vehicle on the lifting platform. Refer to LIFTING THE FRONT AXLE TO THE CURB WEIGHT POSITION .

-- Bleed the rear air spring shock absorber with the Vehicle Diagnostic Tester.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheel.

Continuation for Both Vehicles

-- Turn the wheel hub until one of the holes for the wheel bolts is on top.

-- Install the Engine/Gearbox Jack Adapter - Wheel Hub Support:T10149 with the wheel bolt -A-.

Fig 3: Install The T10149 With The Wheel Bolt -A-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Support the wheel bearing housing.

-- Release the harness connector -1- at the electromechanical parking brake and disconnect.

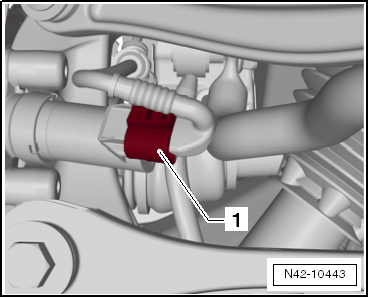

Fig 4: Identifying Parking Brake Motor Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unscrew the bolt -arrow- and remove the bracket -1- with the lines.

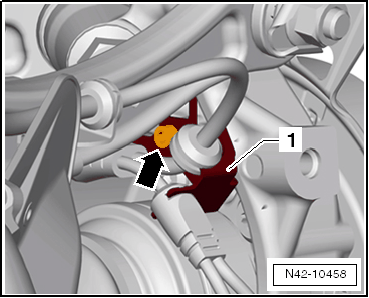

Fig 5: Bracket And Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Vehicles with an Air Spring Shock Absorber

-- Unscrew the threaded connection -arrow- between the air spring shock absorber -1- and the coupling rod at the wheel bearing housing.

-- Remove the bolt.

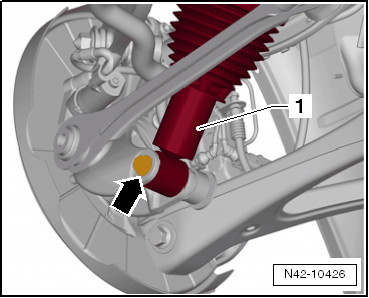

Fig 6: Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Continuation for Both Vehicles

-- Remove the nut -1- and pull the coupling rod -3- out of the stabilizer bar -2-.

-- Push the wheel bearing housing with the Engine/Gearbox Jack Adapter - Wheel Hub Support: T10149 and Engine and Gearbox Jack:VAS6931 upward.

-- Remove connecting link.

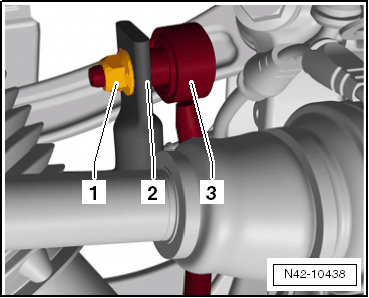

Fig 7: Nut, Coupling Rod And Stabilizer Bar

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
