Rear Upper Transverse Link, Removing And Installing: Installing: Notes

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note The Following:

-- Insert the rear upper transverse link in the vehicle and tighten the bolts by hand.

-- Tighten the bolt for the front upper transverse link on the wheel bearing housing by hand.

Vehicles with a Steel Spring Shock Absorber

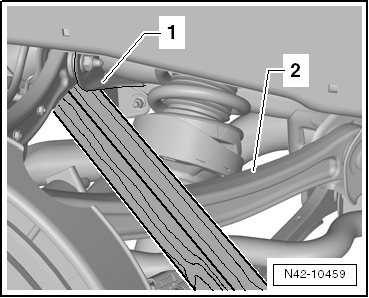

Fig 1: Steel Spring Shock Absorber And Upper Rear Transverse Link

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the block of wood between the subframe -1- and the upper rear transverse link -2-.

-- Press the axle down with a block of wood.

-- Loosen the bolt -arrows- between the spring shock absorber -1- and the coupling rod at the wheel bearing housing.

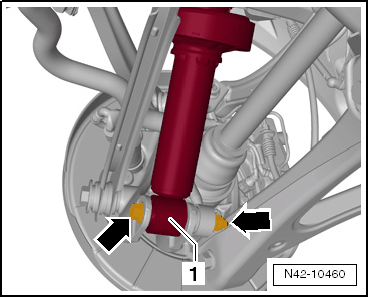

Fig 2: Steel Spring Shock Absorber And Threaded Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten The Bolt By Hand.

The Steel Spring Shock Absorber may only be Bolted to the Coupling Rod on the Wheel Bearing Housing When The Dimension "a" is Achieved. Refer to LIFTING THE FRONT AXLE TO THE CURB WEIGHT POSITION .

-- Tighten the bolt on the steel spring shock absorber.

Continuation For Both Vehicles

Only Bolt the Transverse Link if the Dimension "a" is Reached. Refer to LIFTING THE FRONT AXLE TO THE CURB WEIGHT POSITION .

-- Tighten the transverse link on the subframe and the wheel bearing housing.

Vehicles With An Air Spring Shock Absorber

-- Fill the rear air spring shock absorber with the Vehicle Diagnostic Tester.

Continuation For Both Vehicles

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .
