Starter, Removing And Installing, Vehicles With 4.2L FSI Engine, 265 Kw, Automatic Transmission Ag8: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

All cable ties opened or cut during engine removal must be reinstalled at the same locations during installation.

-- Disconnect The Battery.

-- Drain the coolant. Refer to COOLANT, DRAINING [For engine(s) CATA] .

-- Remove the right coolant pipe. Refer to COOLANT PIPES, REMOVING AND INSTALLING [For engine(s) CATA] .

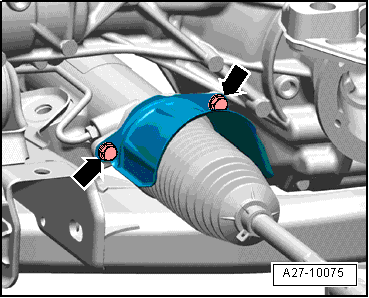

-- Remove the heat shield from the steering gear -arrows- 10 Nm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pre-catalytic converter. Refer to CATALYTIC CONVERTERS, REMOVING AND INSTALLING [For engine(s) CGRA] .

-- Support the engine in its installed position. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING [For engine(s) CATA] .

-- Remove the right wheel housing liner.

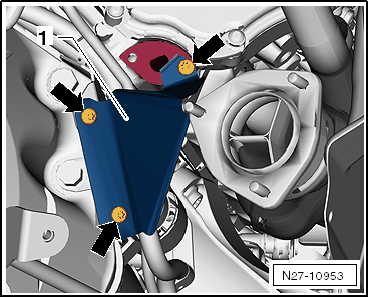

-- Remove the bolts -arrows- and the heat shield -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2- and -3-.

-- Free up wiring harness to the starter at wiring harness bracket -1- by cutting through cable ties.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Release lever is not visible and must be felt with fingers.

-- Disconnect the electrical connector -3- by sliding the retainer back and pressing the release down -arrow-.

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The B+ line can only be removed after disconnecting terminal 50 electrical connector.

-- Remove the nut -2- and disconnect the B+ wire from the solenoid switch.

-- Remove the starter downward.
