Coolant, Draining

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.

CAUTION:

The coolant system must be drained if larger components (for example, engine, radiator, etc.) are going to be removed and installed. Refer to COOLING SYSTEM, EMPTYING . Otherwise an incorrect filling will result due to air bubbles in the system. The cooling and heating systems will have temperature problems.

-- Remove the noise insulation. Refer to NOISE INSULATION .

-- Place the Shop Crane - Drip Tray:VAS6208 under engine.

-- Open the coolant reservoir cap.

-- Remove the quick release coupling -arrow- on the bottom of the radiator on the right side.

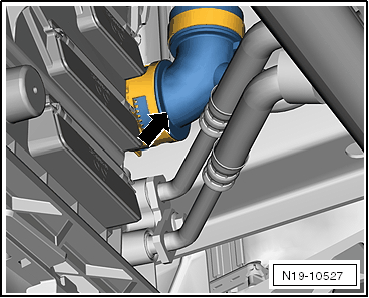

Fig 1: Identifying Radiator Connection Quick Release

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the clamps -A- and remove the auxiliary heater coolant hoses.

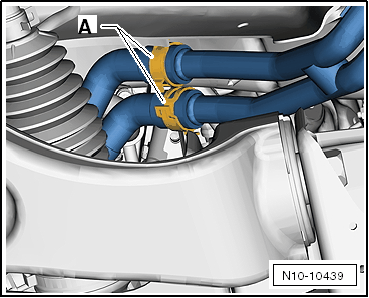

Fig 2: Identifying Heater Core Coolant Hoses

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
