Battery, Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

WARNING:

Risk of injury. Follow all Warnings and Safety Precautions. Refer to WARNINGS AND SAFETY PRECAUTIONS .

CAUTION:
  • Always follow the procedure described in service informationwhen connecting the battery. The battery cut-out will be deactivated and damage to the vehicle electrical equipment may occur if the connecting sequence is not followed exactly. Refer to BATTERY .
  • Observe notes for threaded connections of battery terminals. Refer to BATTERY POST/TERMINAL .
CAUTION:

If battery is not secured properly, the following risks are possible:

  • Shortened battery service life due damage caused by vibration (explosion hazard).
  • If the battery is not secured properly, the plates within the battery can be damaged.
  • Damage to the battery housing caused by bracket (possible electrolyte leakage, high subsequent costs).
  • Inadequate crash safety.

Install in reverse order of removal. Note The Following:

-- Install the battery hold-down bracket -2- and tighten the bolt -1- to 10 Nm.

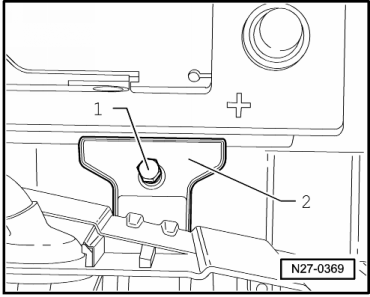

GWWN27-0369Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the battery tray -2- and tighten the bolt -1- to 9 Nm.

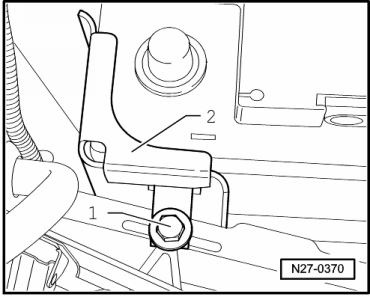

GWWN27-0370Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Make sure the central gas vent hose is attached to the battery -arrow- and that it cannot get disconnected when the battery is being installed. Only then can battery be properly vented.

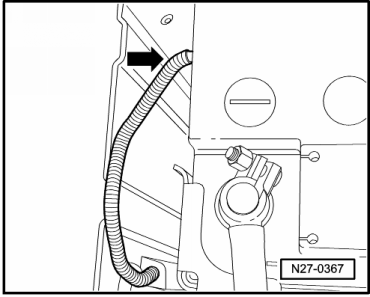

GWWN27-0367Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Make sure the battery is seated correctly after installing it.

CAUTION:

Connect the battery terminals by hand to prevent damaging the battery case.

Do not put any grease on the battery terminals.

-- Connect the battery positive clamp -2- to the battery positive terminal.

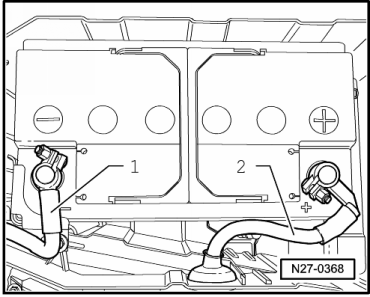

GWWN27-0368Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten bolt on the battery positive terminal to 6 Nm.

-- Only after the positive (B+) terminal has been secured should negative (-) terminal clamp -1- be installed.

-- Tighten bolt on the battery negative terminal to 6 Nm.

CAUTION:
  • Always follow the procedure described in service informationwhen connecting the battery. The battery cut-out will be deactivated and damage to the vehicle electrical equipment may occur if the connecting sequence is not followed exactly. Refer to BATTERY .
  • Observe notes for threaded connections of battery terminals. Refer to BATTERY POST/TERMINAL .

-- Tape the carpet together.

-- Connect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Adapt the battery data after replacing the battery. Refer to BATTERY DATA, ADAPTING
