Overview - Front Steel Spring Shock Absorber

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

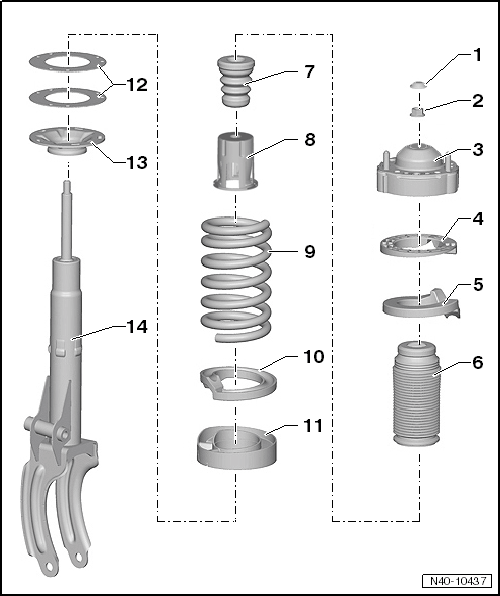

Fig 1: Exploded View Of Front Steel Spring Shock Absorber

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sealing Plugs
Nut
- 56 Nm
- Always replace if removed
Mount Plate
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
- Replace only as a complete unit
Upper Spring Washer
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
- Note the installation position. Refer to INSTALL THE UPPER SPRING WASHER .
Upper Spring Support
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
- Note the installation position. Refer to THE END OF THE UPPER SPRING COIL .
Boot
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
- Note the installation position. Refer to ENGAGE THE BOOT .
Stop Buffer
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
- Note the installation position. Refer to ENGAGE THE STOP BUFFER .
Stop Cap
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
Coil Spring
- Surface of spring coil may not be damaged
- Note the color code. Refer to COLOR CODE ON THE COIL SPRING
- Pay attention to the allocation of the spacers. Refer to SPACER ALLOCATION .
- For the allocation. Refer to the Parts Information.
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
- Note the installation position. Refer to THE END OF THE LOWER SPRING COIL .
Lower Spring Support
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
- Note the installation position. Refer to THE END OF THE LOWER SPRING COIL .
Lower Spring Washer
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
- Note the installation position. Refer to INSTALL THE LOWER SPRING SUPPORT .
Spacer
- Note the installed position. Refer to SPACER INSTALLED POSITION .
- Pay attention to the allocation of the spacers. Refer to SPACER ALLOCATION .
Spring Plate
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
Shock Absorber
- For the allocation. Refer to the Parts Information.
- Removing and installing. Refer to STEEL SPRING SHOCK ABSORBER, REPAIRING .
