Overview - Drive Axle

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

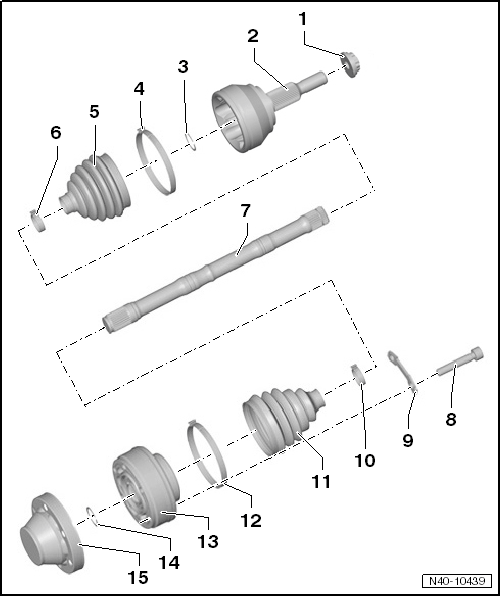

Fig 1: Exploded View Of Drive Axle

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Nut
- 500 Nm
- Always replace if removed
Outer CV Joint
- Replace only as a complete unit.
- Checking. Refer to OUTER JOINT, CHECKING .
- Removing and installing. Refer to REMOVING THE OUTER CV JOINT .
- For the allocation. Refer to the Parts Information.
Circlip
- Always replace if removed
- Insert in shaft groove
Clamp
- Always replace if removed
- Tensioning. Refer to TIGHTENING THE TENSIONING CLAMP ON THE LARGER DIAMETER .
CV Boot
- Check for tears and scuffing
- Material: Hytrel polyelastomer
Clamp
- Always replace if removed
- Tensioning. Refer to TENSIONING CLAMP ON SMALL DIAMETER .
Drive Axle
- For the allocation. Refer to the Parts Information.
Internal Multi-Point Bolt
- 50 Nm + 90°
- Always replace if removed
Backing Plate
Clamp
- Always replace if removed
- Tensioning. Refer to TENSIONING CLAMP ON SMALL DIAMETER .
CV Boot
- Check for tears and scuffing
- Material: Hytrel polyelastomer
Clamp
- Always replace if removed
- Tensioning. Refer to TIGHTENING THE TENSIONING CLAMP ON THE LARGER DIAMETER .
Inner CV Joint
- Replace only as a complete unit.
- Removing and installing. Refer to REMOVING THE INNER CV JOINT .
- For the allocation. Refer to the Parts Information.
Circlip
- Always replace if removed
- Insert in shaft groove
Cover
- Always replace if removed
