Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The release cable -2- is not disconnected from the lid lock.

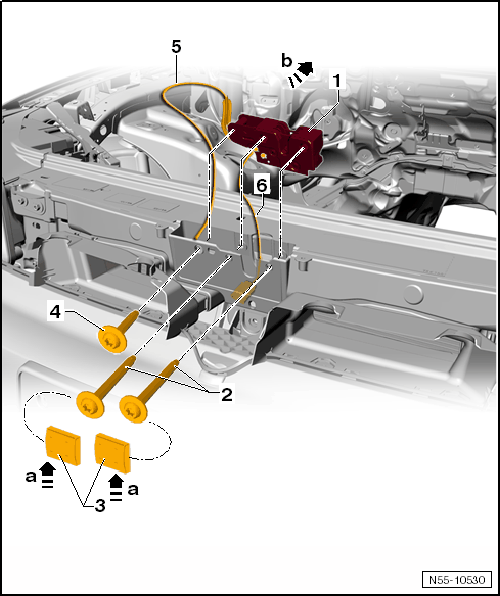

Fig 1: Lid Lock. With Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Open the hood.

-- Remove the release cable -5- from the coupling. Refer to RELEASE CABLE, DISCONNECTING .

-- Disconnect the harness connector -6- for the engine hood contact switch depending on the optional equipment.

-- Remove the caps -3- from the bolts -2- -arrow a-

-- Remove the bolts -2 and 4- and remove the lid lock -1- upward -arrow b- from the lock carrier.

NOTE:

Removing and installing the engine hood contact switch on the lid lock depending on the optional equipment. Refer to LUGGAGE COMPARTMENT LAMPS AND SWITCHES .
