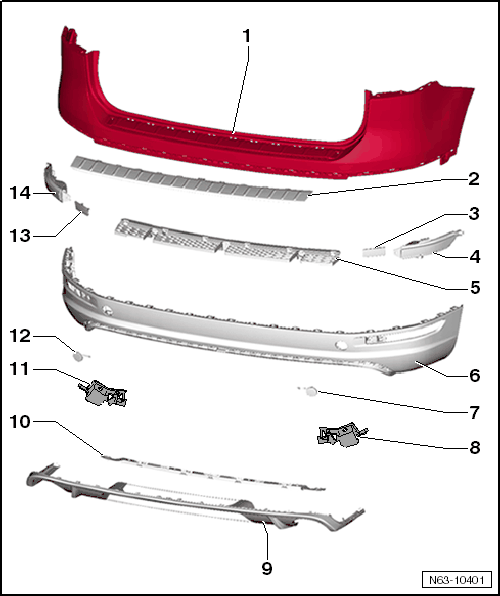

Overview - Attachments >>R-Line<< Through 09/2014
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.
- Rear Bumper Cover
- PP+EPDM material
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Cover Strip
- Engaged in the rear bumper cover -1-.
- To be removed only with bumper cover removed
- Parking Aid Sensors
- Left
- Information regarding the parking aid. Refer to PARKING AID .
- Rear Fog Lamp
- Right
- Remove only when bumper cover -1- has been removed.
- Information regarding the fog lamps. Refer to FOG LAMP .
- Lower Retaining Part
- Removing. Refer to OVERVIEW - SUBSTRUCTURE .
- Rear Spoiler
- PP+EPDM material
- painted in vehicle color
- Locked to bumper cover
- Remove only when bumper cover -1- has been removed.
- Towing Eye Cap
- Material PC/PBT
- Right
- Engaged in the rear bumper cover -1-.
- Adapter Spoiler
- Right
- Diffuser
- PP+EPDM material
- Locked to bumper cover
- Remove only when bumper cover -1- has been removed.
- Adapter Spoiler
- Adapter Spoiler
- Left
- Towing Eye Cap
- Material PC/PBT
- Left
- Engaged in the rear bumper cover -1-.
- Parking Aid Sensors
- Left
- Information regarding the parking aid. Refer to PARKING AID .
- Rear Fog Lamp
- Left
- Remove only when bumper cover -1- has been removed.
- Information regarding the fog lamps. Refer to FOG LAMP .
