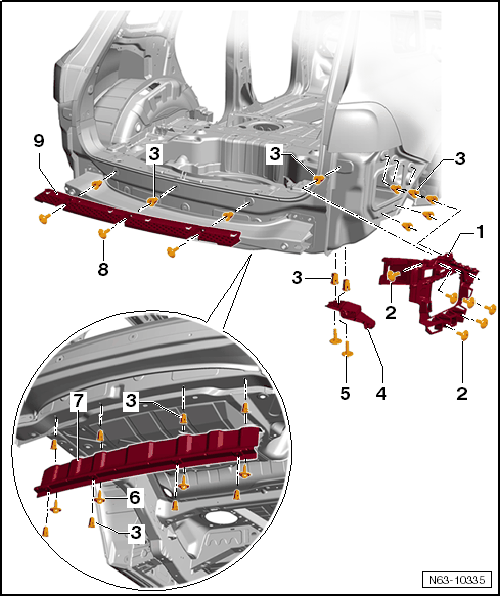

Overview - Substructure
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Depending on the model there are only optical differences. Different version, allocation. Refer to Parts information.
- Side Guide
- Left and right
- Bolts
- 3 Nm
- For the lateral guide
- Quantity: 6 on each side
- Expanding Nuts
- 5 per side for the lateral guide
- 2 per side for the angle bracket
- 4 for the lower retaining part
- 4 in the lower retaining part
- 3 for the center guide profile
- Bracket
- Left and right
- Bolts
- 3 Nm
- For the angle bracket
- Quantity: 2 on each side
- Bolts
- 3 Nm
- For the lower retaining part
- Quantity: 4
- Lower Retaining Part
- Bolts
- 3 Nm
- For the guide profile
- Quantity: 3
- Center Guide
