Bumper Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

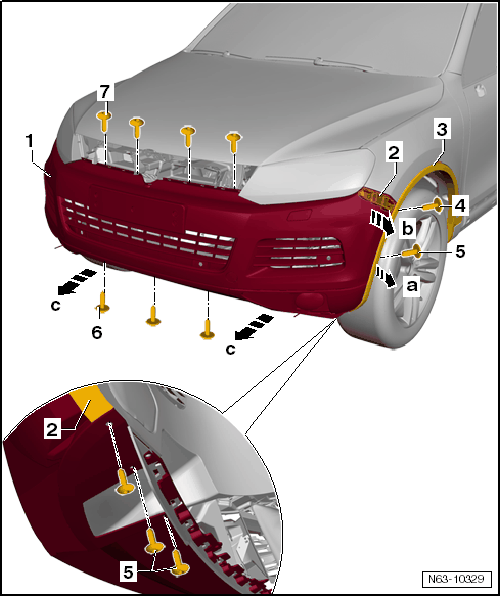

Fig 1: Identifying Front Bumper Cover, Removal/Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the bolts -7-.

-- Remove bolts -5 and 6- from the bottom.

-- Pull the left and right wheel cover -3- from the 3 latching mechanisms in the bumper cover -1- -arrow a-.

-- Remove the left and right bolts -4 and 5- from the wheel housing.

-- Release the latching mechanisms on the lateral guides in direction of -arrows b-.

A second technician is required for the rest of the removal procedure.

-- Remove the front bumper cover -1- from the vehicle so that it is parallel in direction of -arrows c-. A second technician is needed for this.

-- Depending on the equipment, disconnect the connectors of the electrical components.

Information regarding the parking aid. Refer to PARKING AID .

Information regarding the distance regulation control modules. Refer to ADAPTIVE CRUISE CONTROL and ADAPTIVE CRUISE CONTROL .

Information regarding the environmental camera. Refer to PARKING AID .

-- Disconnect the hose coupling on the windshield washer fluid lines (if present). Refer to HEADLAMP WASHER SYSTEM .
