Overview - Noise Insulation

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Depending on the engine version, slight deviations must be considered when removing and installing.

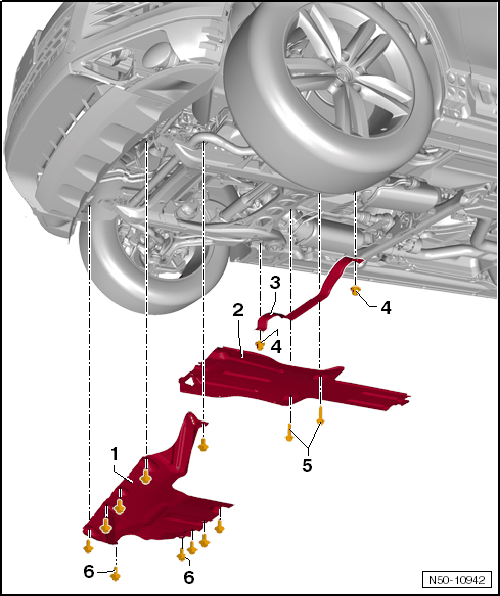

Fig 1: Exploded View Of Noise Insulation
GWWN50-10942Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Noise Insulation
    • Removing:

      -- Remove the bolts -6-.

  2. Rear Noise Insulation
    • Removing:

      -- Remove the screws -5-.

      -- Remove the rear bolts -6- from the front noise insulation.

      -- Pull the noise insulation out in a backward direction.

  3. Bracket
  4. Hex Nut
    • 6 Nm
    • For angle bracket
    • Quantity: 2
  5. Bolt
    • 6 Nm
    • Quantity: 2
  6. Bolt
    • 6 Nm
    • Quantity: 10
