Microphones, Removing And Installing, Infotainment System: Removing:

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Unclip the interior lighting diffusion lens at the locations marked with -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the screws -arrows- inside the lamp.

-- Unclip the insert in the front roof console and disconnect the connector.

Microphone overview - in front roof console. Refer to OVERVIEW - MICROPHONE IN FRONT ROOF CONSOLE .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

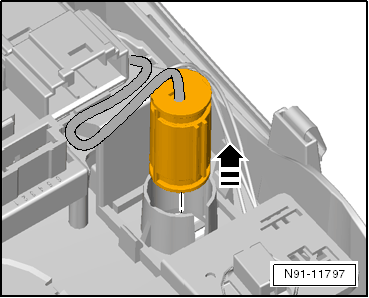

-- Remove the Interior Microphone -R74- for the noise compensation inside the passenger compartment in direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

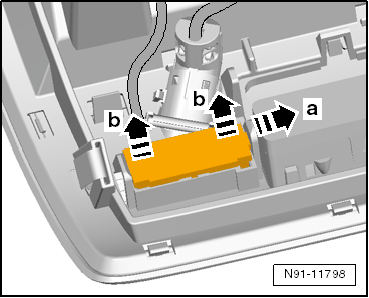

-- Move the retainer in direction of -arrow a- and remove the Left Front Microphone -R140- and Right Front Microphone -R141- evenly in direction of -arrow B-.

-- Disconnect the connector from the microphone.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
