Overview - Microphone In Front Roof Console

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

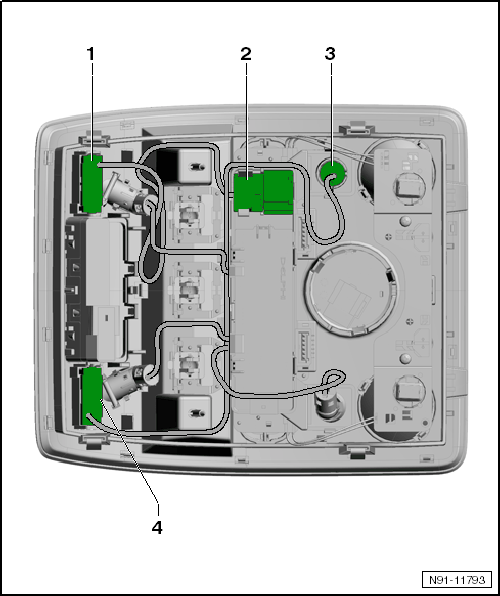

Fig 1: Exploded View Of Microphone In Front Roof Console

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Front Microphone -R140-
- Radio and telephone speech recognition system microphone
- Removing and installing. Refer to MICROPHONES, REMOVING AND INSTALLING, INFOTAINMENT SYSTEM
Microphone Connector for Wire Connections
Interior Microphone -R74-
- For the passenger compartment noise compensation in the Digital Sound System Control Module -J525-
- Removing and installing. Refer to MICROPHONES, REMOVING AND INSTALLING, INFOTAINMENT SYSTEM
Right Front Microphone -R141-
- For the telephone
- Removing and installing. Refer to MICROPHONES, REMOVING AND INSTALLING, INFOTAINMENT SYSTEM
