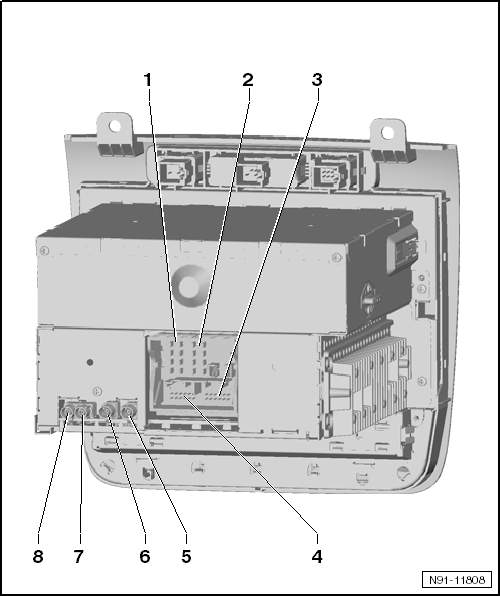

"Rcd 550" Connector Overview: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- 8- Pin Multi-Pin Connector 1 Inside the Connector Housing
- Terminal assignment. Refer to 8-PIN MULTI-PIN CONNECTOR 1, FOR SPEAKER OUTPUTS
- 8- Pin Multi-Pin Connector 2 Inside the Connector Housing
- Terminal assignment. Refer to 8-PIN MULTI-PIN CONNECTOR 2, FOR THE POWER SUPPLY AND CAN-BUS
- 12-Pin Multi-Pin Connector 3 Inside the Connector Housing
- Terminal assignment. Refer to 12-PIN MULTI-PIN CONNECTOR 3, FOR TELEPHONE AND MICROPHONE SIGNALS
- 12-Pin Multi-Pin Connector 4 Inside the Connector Housing
- Terminal assignment. Refer to 12-PIN MULTI-PIN CONNECTOR 4, FOR CD CHANGER CONTROLS AND THE CD AUDIO INPUT SIGNALS
- Rearview Camera/Peripheral Camera System Signal Connection
- Antenna Connection
- DAB (Digital Audio Broadcasting) antenna connection input, option
- Antenna Connection
- Antenna FM 2
- Antenna Connection
- FM/AM antenna
