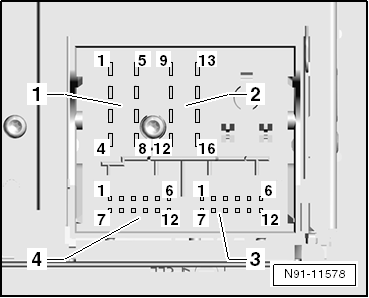

12-Pin Multi-Pin Connector 3, For Telephone And Microphone Signals

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Not Assigned

2 - Not Assigned

3 - Not Assigned

4 - Not Assigned

5 - Left Telephone Audio Input Signal, Negative

6 - Right Telephone Audio Input Signal, Negative

7 - Not Assigned

8 - Not Assigned

9 - Not Assigned

10 - Telephone Mute (Radio Mute)

11 - Left Telephone Audio Input Signal, Positive

12 - Right Telephone Audio Input Signal, Positive
