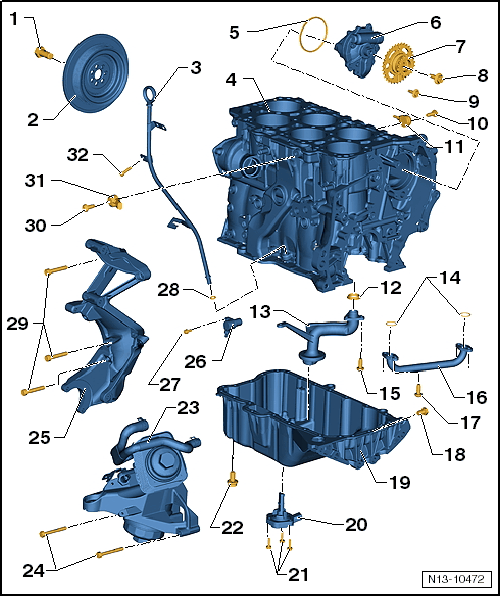

- Vibration Damper Bolts
- 60 Nm + 180° additional turn
- Quantity: 7
- Vibration Damper
- Removing and Installing. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
- Ribbed Belt, Removing and Installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
- Guide Tube
- For the oil dipstick
- Secured by a bolt to intake manifold
- Cylinder Block
- Sealing flange and flywheel/drive plat. Refer to SEALING FLANGES AND DRIVE PLATE
- Crankshaft. Refer to CRANKSHAFT .
- Piston and Connecting Rod. Refer to PISTON AND CONNECTING ROD .
- Seal
- Always replace
- Coat with oil before installing
- Oil Pump
- Removing and installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
- Chain Sprocket
- Camshaft Adjuster with Camshaft Timing Chain, Installing. Refer to CAMSHAFT ADJUSTER, REMOVING AND INSTALLING .
- Bolt
- 60 Nm + 90° additional turn
- Always replace
- Bolt
- 8 Nm
- Insert with Locking Fluid: D 000 600 A2
- Bolt
- 20 Nm
- Tightening specifications affect function of knock sensor
- Knock Sensor 1 -G61-
- Installed location: Between the 1st and 3rd cylinder under the exhaust manifold
- Seal
- Always replace
- Oil Intake Pipe
- For the oil pump
- O-Rings
- Always replace
- Bolt
- 8 Nm
- Insert with Locking Fluid: D 000 600 A2
- Oil Pressure Pipe
- Bolt
- 8 Nm
- Insert with Locking Fluid: D 000 600 A2
- Oil Drain Plug
- 30 Nm
- Always replace
- With permanent sealing ring
- Oil Pan
- Removing and installing. Refer to OIL PAN, REMOVING AND INSTALLING .
- Oil Level Thermal Sensor -G266-
- Bolts
- 12 Nm
- Oil Pan Bolt
- 10 Nm
- Oil Filter Housing/Left Engine Bracket
- Disassembling and Assembling. Refer to OVERVIEW - OIL FILTER HOUSING .
- Coolant Hose Connection Diagram. Refer to COOLANT HOSE CONNECTION DIAGRAM .
- Remove left or right engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- 23 Nm
- Auxiliary Components Bracket
- For the Generator, A/C compressor and power steering pump
- Engine Speed Sensor -G28-
- Removing and installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- O-Ring
- Always replace
- Bolt
- 25 Nm
- Bolt
- 20 Nm
- Tightening specifications affect function of knock sensor
- Knock Sensor 2 -G66-
- Installed location: between cylinders 4 and 6
- Bolt
- 6 Nm
- Attached to the intake manifold
