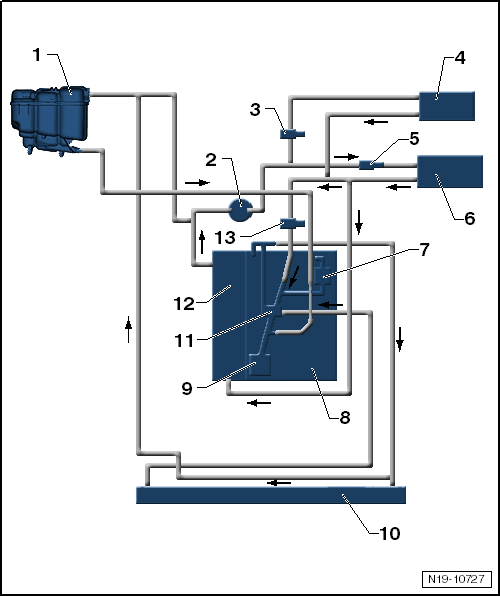

Coolant Hose Connection Diagram
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Expansion Tank
- Engine Coolant Circulation Pump 2 -V178-
- Removing and installing. Refer to ENGINE COOLANT CIRCULATION PUMP 2 -V178-, REMOVING AND INSTALLING .
- ATF Pre-Heater Shut-Off Valve
- Activated by the Cooling Oil Valve -N471-
- ATF Pre-Heater
- Coolant Shut-Off Valve -N82-
- Connecting the auxiliary heater into the coolant system. Refer to COOLANT SHUT-OFF VALVE -N82-, REMOVING AND INSTALLING .
- Heater Core for Heater
- Removing and installing. Refer to appropriate service information. .
- Connecting the auxiliary heater into the coolant system. Refer to COOLANT SHUT-OFF VALVE -N82-, REMOVING AND INSTALLING .
- Change the coolant after replacing
- Engine Oil Cooler
- Cylinder Block
- Coolant Pump
- Activated by the Coolant Regulation Valve - N515-
- Check the membrane in the coolant pump for leaks using the : VAS6213
- Radiator
- With ATF cooler and condenser
- Change the coolant after replacing
- Coolant Thermostat
- Checking, removing and installing. Refer to COOLANT THERMOSTAT, REMOVING, INSTALLING AND CHECKING .
- Cylinder Head
- Cylinder Block Shut-Off Valve
- Activated by the Cylinder Block Coolant Valve - N545-
