Right Exhaust Manifold, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Drain the coolant. Refer to COOLANT, DRAINING .

-- Remove the differential ventilation hose -1- from the air filter housing upper section.

Fig 1: Air Filter Housing And Intake Duct

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect connector -3- on the Mass Air Flow Sensor -G70-.

-- Disconnect air guide hose -4- from the turbocharger.

-- Release clips -2- and remove the air filter upper section.

-- Remove the connector -arrow- from the bracket and disconnect it.

Fig 2: Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the connector bracket from the cylinder head cover.

-- Remove the coolant hose -arrow- from the coolant reservoir.

Fig 3: Coolant Hose

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

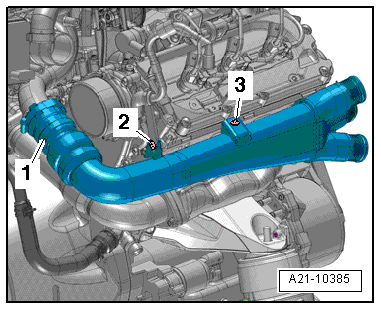

-- Remove the bolts -2 and 3-.

Fig 4: Bolts -2 And 3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamp -1- and remove the air duct pipe from the air duct hose forward.

-- Remove the right intermediate pipe. Refer to RIGHT INTERMEDIATE PIPE, REMOVING AND INSTALLING .

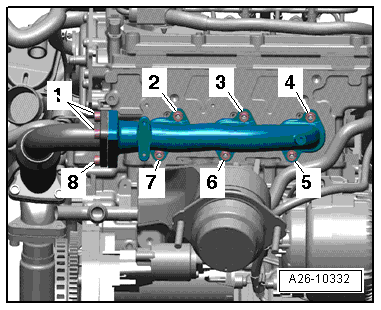

-- Remove the bolts -1 through 8- and the exhaust manifold.

Fig 5: Exhaust Manifold And Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
