Work Procedure

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Separate the exhaust pipes at the separating points -arrow- using a :VAS6254 .

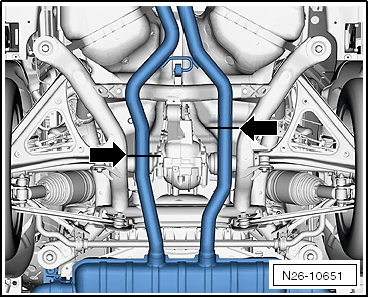

Fig 1: Identifying Separating Points -Arrows- For Clamping Sleeves

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- When installing, position clamping sleeves -arrows- centrally on separation point.

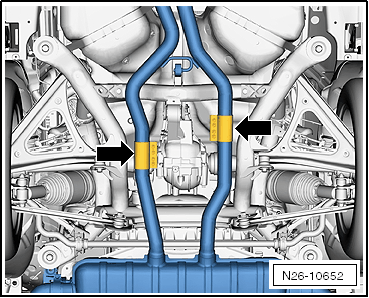

Fig 2: Identifying Clamping Sleeves -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install double clamps so that the bolt ends do not project over lower edge of double clamp. The clamping sleeve must not touch other components, even at extreme movements of the exhaust system.

Tightening specification: 35 Nm.

-- Install the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
