Radiator, Removing, Installing And Disassembling: Removing

Special Tools And Workshop Equipment Required

• Spring Clip Pliers:VAS6499
• Shop Crane - Drip Tray:VAS6208

-- Drain the coolant. Refer to COOLANT, DRAINING .

-- Remove the fan shroud. Refer to FAN SHROUD WITH COOLANT FAN, REMOVING AND INSTALLING .

-- Evacuate the refrigerant in the A/C system. Refer to REFRIGERANT CIRCUIT .

-- Remove the bolt -A- and the connections on the transmission fluid cooler. Catch any fluid coming out.

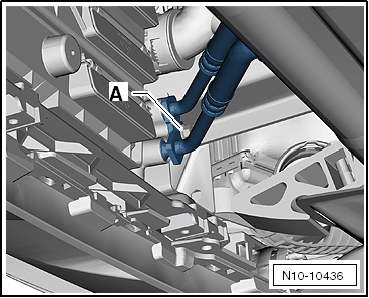

Fig 1: Identifying Transmission Fluid Cooler Line Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the refrigerant lines -A- from the radiator.

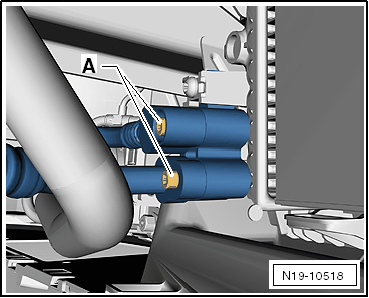

Fig 2: Locating Refrigerant Line Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove all coolant lines from the radiator.

-- Remove the radiator grille -1-. Refer to RADIATOR GRILLE .

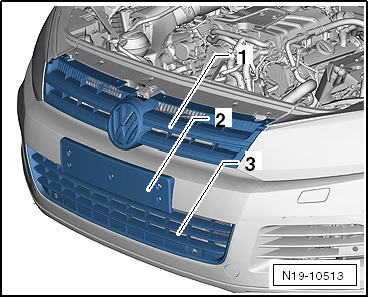

Fig 3: Identifying License Plate Holder -2- And Center Air Guide Grille -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the license plate holder -2- and the center air grille -3-. Refer to FRONT BUMPER COVER .

-- Open the air guide on both sides of the air guide opening in direction of -arrow- and remove the bolts -A-.

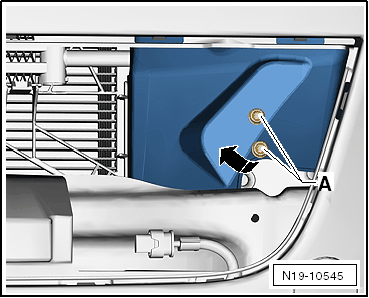

Fig 4: Folding Up Air Guide On Left And Right -Arrow- To Remove Screws -A- (25 Nm)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the lower radiator mounts from the radiator module over the longitudinal members.

-- Remove the bolts in direction of -arrow- (quantity: 3) from the air guide through the lowest air grille.

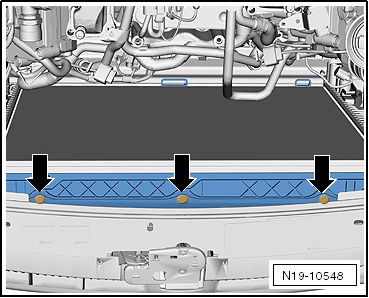

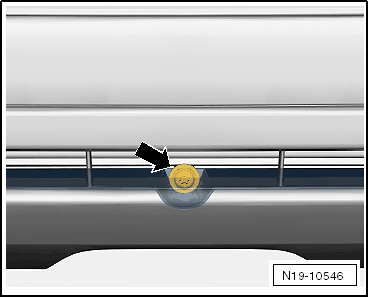

Fig 5: Air Guide Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -arrow- next to the left and right headlamps.

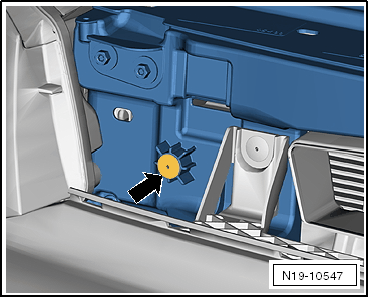

Fig 6: Identifying Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the radiator module toward the engine, open the clips -arrows- on the upper air guide on the radiator and remove it.

Fig 7: Identifying Remove Clips -Arrows- On Top Of Radiator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unlock the locking bolts -B- on both upper radiator mounts -A- by pushing them in direction of -arrow- and then pulling upward.

-- Remove both upper radiator mounts -A-.

-- Remove the radiator module upward.

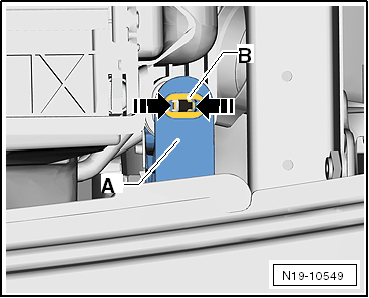

Fig 8: Pushing Locking Pins -B- In Both Radiator Mounts -A- In -Direction Of Arrow- To Remove Them

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
