Cooling System, Emptying

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Spring Clip Pliers:VAS6499
Shop Crane - Drip Tray:VAS6208
Hose extension diameter 20 mm
20 mm diameter blind plug (quantity: 2)
Compressed air gun

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.

-- Drain the coolant. Refer to COOLANT, DRAINING .

-- Remove the left front wheel. Refer to appropriate service information .

-- Remove the left front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Open the clamps and remove the coolant hoses -A through D-.

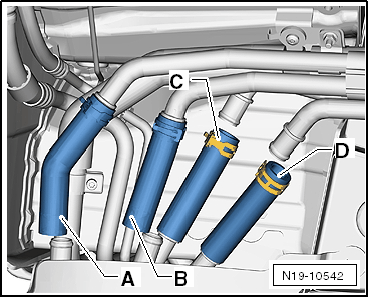

Fig 1: Identifying Coolant Hoses -A Through D-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach a suitable hose -1- to the line -C- to lengthen it and place the one end in the Shop Crane - Drip Tray:VAS6208 .

-- Apply maximum 1 bar (14.5 psi) compress air across the line -D- using a compressed air gun -2- until the circuit is completely empty.

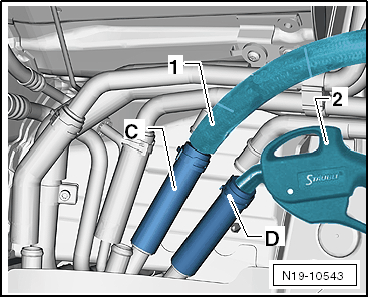

Fig 2: Identifying Line -C To D-, Hose -1- And Compressed Air Gun -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the blind plug -3- as illustrated, attach a suitable hose -1- to the line -B- to lengthen it and place the one end in the Shop Crane - Drip Tray:VAS6208 .

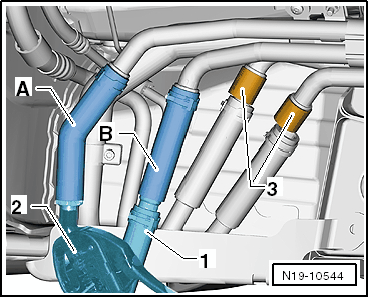

Fig 3: Identifying Lines -A To B-, Blind Plug -3-, Compressed Air Gun -2- And Suitable Hose -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Apply maximum 1 bar (14.5 psi) compress air across the line -A- using a compressed air gun -2- until the circuit is completely empty.

-- Connect the coolant hoses and the clamps.
