EGR Cooler Pump -V400-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING .

-- Disconnect the connector -2-.

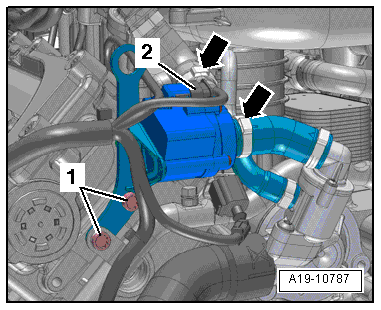

Fig 1: Identifying Bolts -1- And Electrical Connector -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1-.

-- Remove the coolant hoses, to do so, loosen the hose clamps -arrows-.

-- Remove the EGR Cooler Pump -V400- with the engine lifting eye.

-- Remove the bolts -arrows- and remove the EGR Cooler Pump -V400- from the engine lifting eye.

Fig 2: Identifying Bolts -1-, EGR Cooler Pump And Engine Lift Eye

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
