Right Coolant Pipe, Removing And Installing: Removing

-- Drain the coolant. Refer to COOLANT, DRAINING .

-- Remove the generator. Refer to GENERATOR .

-- Remove the EGR Cooler Pump -V400-. Refer to EGR Cooler Pump -V400-, REMOVING AND INSTALLING .

Vehicles with Engine Code CATA

Fig 1: Identifying Bolt -1-, EGR Coolant Thermostat And Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- and remove the exhaust gas recirculation coolant thermostat and connection from the thermostat and connection.

All Engine Codes

Fig 2: Identifying Nut -1- And Connector -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the starter connector -2-.

-- Remove the nut -1- and then remove the battery positive wire form the threaded pin on the starter.

-- Support the engine in its installed position. Refer to ENGINE, SUPPORTING IN INSTALLED POSITION .

-- Pre-tension the engine slightly using the engine support bridge spindles.

-- Remove the nut -1- on the right longitudinal member and disconnect the ground connection.

Fig 3: Identifying Ground (GND) Cable On Longmember

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts and nuts -1 through 5- and remove the right engine support upward.

Fig 4: Identifying Bolts And Nuts -1 Through 5-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

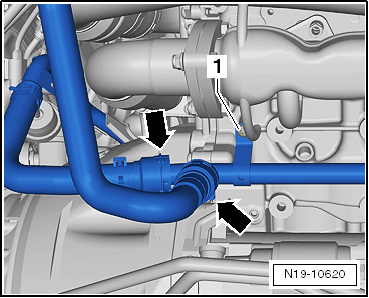

Fig 5: Identifying Bolt -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coolant hose -arrow- from the right coolant pipe by lifting the retaining clamp.

-- Using a Wrench - Pin Type:3212  as a counterholder, remove the bolts -arrows- and remove the coolant pump ribbed belt pulley.

Fig 6: Identifying Spanner Wrench 3212 And Bolts -Arrows-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1- and nut -2-.

-- Remove the right coolant pipe forward from the cylinder block.

Fig 7: Identifying Bolt -1- And Nut -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
