Left Rear Coolant Pipe, Removing And Installing [XXXX]: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING .

-- Remove the left intermediate pipe. Refer to LEFT INTERMEDIATE PIPE, REMOVING AND INSTALLING .

-- Disconnect cylinder 6 glow plug connector.

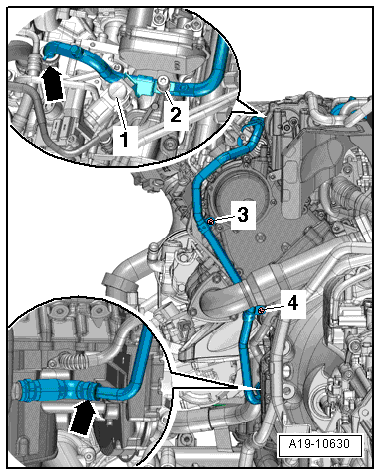

-- Remove the EGR Cooler Switch-Over Valve -N345- -item 1- from the bracket.

-- Remove the bolts -3- and -4- and ball pins -2-.

-- Free up the wiring harness on the left rear coolant pipe.

-- Remove left rear coolant pipe from the coolant hoses -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
