Left Rear Coolant Pipe On Transmission, Removing And Installing, Engine Codes Casa And CASD: Removing

WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING .

-- Remove the catalytic converter. Refer to EXHAUST SYSTEM COMPONENTS .

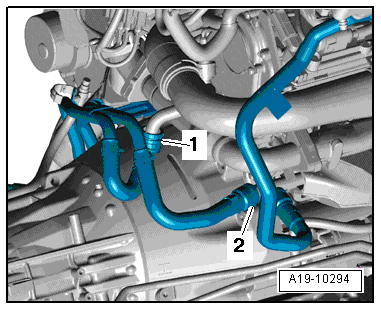

-- Remove right coolant hoses -1- and -2- from the engine.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1- and -2-.

-- Remove both left rear coolant pipes on the transmission and the coolant hoses.

Fig 1: Removing Coolant Lines

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
