Thermostat With Connections, Removing And Installing, Engine Codes Casa, CASD: Removing
WARNING: This page is about a different car, the 2012 Volkswagen Touareg and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING .
-- Remove the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

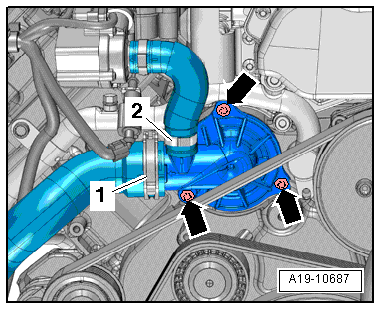

-- Open the clamps and remove the coolant hoses -1 and 2-.
-- Remove the bolts -arrows- and the thermostat with the connection.
