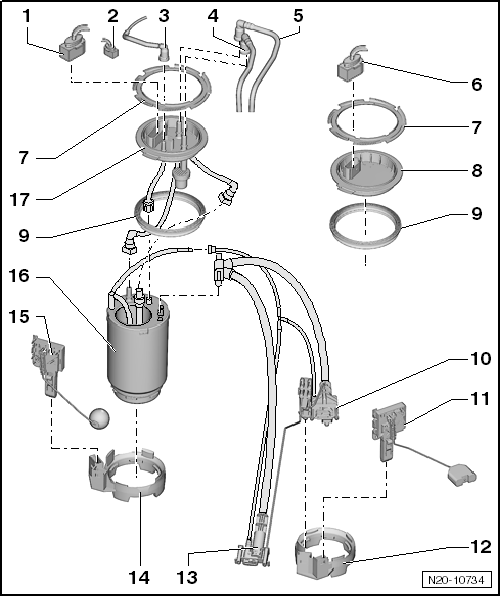

Overview - Fuel Delivery Unit/Fuel Level Sensor
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- For the fuel pump
- Connector
- For the Fuel Level Sensor -G-
- Fuel Line
- For the parking heater
- Check for secure fit
- Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Supply Line
- Black
- Check for secure fit
- Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Return Line
- Blue
- Check for secure fit
- Disconnect the connector couplings. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Connector
- for Fuel Level Sensor 2 -G169-
- Locking Ring
- 145 Nm
- Remove and install using the Wrench - Fuel Sending Unit:T10202
- Check for secure fit
- Flange
- Left side
- Pay attention to the fuel tank installation position. Refer to Figure.
- Seal
- Replace if damaged
- Suction Jet Pump
- Clipped to the retaining ring -step ) OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR - RETAINING RING.
- Removing and Installing. Refer to SUCTION JET PUMP, REMOVING AND INSTALLING .
- Fuel Level Sensor 2 -G169-
- Left side
- Clipped to the retaining ring ) OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR - RETAINING RING.
- Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
- Retaining Ring
- Welded to the fuel tank
- For the Fuel Level Sensor 2 -G169- and the suction jet pump retainer
- Suction Jet Pump
- Removing and Installing. Refer to SUCTION JET PUMP, REMOVING AND INSTALLING .
- Retaining Ring
- Welded to the fuel tank
- For the Fuel Level Sensor -G-
- Fuel Level Sensor -G-
- Right side
- Clipped to the retaining ring -step ) OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR - RETAINING RING.
- Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
- Fuel Delivery Unit
- Removing and Installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
- Fuel Pump, Checking. Refer to FUEL PUMP .
- Flange
- Right side
- Pay attention to the fuel tank installation position. Refer to Figure.
