Overview - Power Steering Gear

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

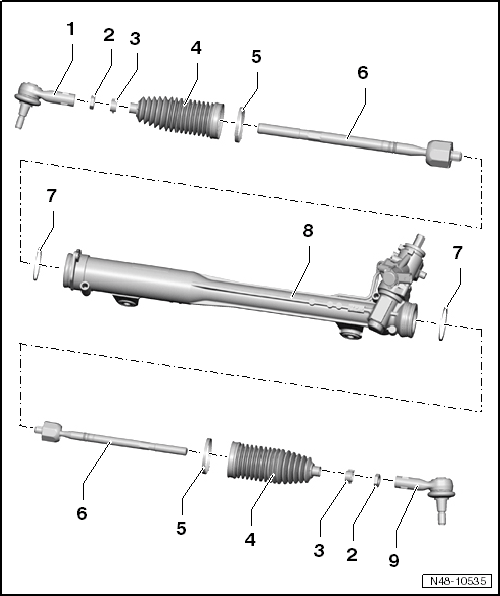

Fig 1: Identifying Power Steering Gear Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Tie Rod End
- Marked with an "R". Refer to Installing
- Check dust caps for damage and correct seating
- Tapered plug must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- Removing and installing. Refer to TIE ROD END, REMOVING AND INSTALLING .
Hex Nut
- 70 Nm
Spring Clamp
Boot
- Check for damage
- Must not be twisted when toe is being adjusted
Clamp
- Always replace if removed
Tie Rod
- 100 Nm
- Removing and installing. Refer to TIE ROD, REMOVING AND INSTALLING .
Seal
- Replace when removing the boot. Refer to BOOT, REMOVING AND INSTALLING
- For the allocation. Refer to the Parts Information.
Power Steering Gear
- Removing and installing. Refer to POWER STEERING, REMOVING AND INSTALLING .
Left Tie Rod End
- Marked with an "L". Refer to INSTALLING .
- Check dust caps for damage and correct seating
- Tapered plug must be free of oil and grease
- If necessary, clean with a dry rag, do not use cleaning solvent
- Removing and installing. Refer to TIE ROD END, REMOVING AND INSTALLING .
