Tie Rod, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal while noting the following:

If the boot was removed from the steering gear, the sealing ring -item ) OVERVIEW - POWER STEERING GEAR - SEAL on the steering gear must also be replaced.

-- Make sure the correct tie rod end is installed on each side.

Fig 1: Identifying Left Tie Rod End -I- And Right Tie Rod End -II-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

I - Left tie rod end marked with an "L"

II - Right tie rod end marked with an "R"

-- Tighten The Tie Rod.

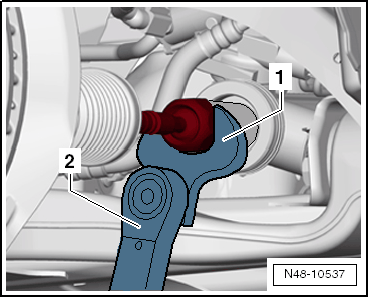

Fig 2: Identifying V.A.G 1923 -1- And V.A.G 1332 -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Torque Wrench Insert - Open Jaw:VAG1923
Torque Wrench 1332 40-200 Nm :VAG1332

-- Check the boot for wear (slits, cracks) and check the sealing surfaces of the boot for dirt.

-- Install the boot and clamp.

NOTE:

Only use original clamps.

Install In Reverse Order Of Removal.

-- Install the wheel and tighten. Refer to WHEEL BOLT TIGHTENING SPECIFICATIONS .

-- After installation, a vehicle alignment must be performed. Refer to WHEEL ALIGNMENT .
