Brake Shoes, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

T-Handle Hook:3438

NOTE:

When removing, mark the brake shoes that will be used again. Re-install in the same position, otherwise the air gap is changed and the braking effect will be uneven!

-- Remove the rear wheels.

Connect the :Vehicle Diagnostic Tester and select the function. Refer to , CONNECTING AND SELECTING FUNCTIONS .

-- While doing so, select the electro-mechanical parking brake and then the "Move parking brake motors into installation position" function.

-- Move the parking brake motors into the installation position using the :Vehicle Diagnostic Tester .

NOTE:

Disconnect the connector from the parking brake motor as a precaution. If the brake rotor/brake drum is removed, this may cause problems if, for example, the ignition key is removed and then the parking brake motor closes the parking brake.

-- Release and remove the connector -1- from the parking brake motor.

Fig 1: Identifying Parking Brake Motor Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove brake caliper from wheel bearing housing.

-- Remove brake caliper and secure with wire so that the weight of the brake caliper does not burden or damage the brake hose.

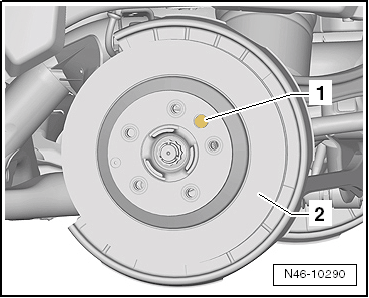

-- Remove the fitting bolt -1-.

Fig 2: Locating Fitting Bolt

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the brake rotor/brake drum -2-.

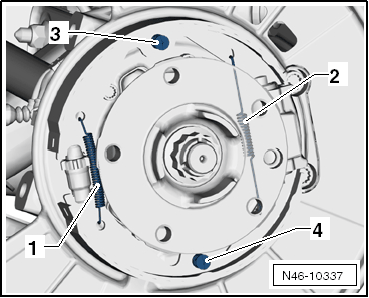

-- Disengage the tension spring -1- and the return spring -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the spring pins -3 and 4- with the pressure springs and remove the brake shoes.
