:Vehicle Diagnostic Tester, CONNECTING AND SELECTING FUNCTIONS

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

:Vehicle Diagnostic Tester
Diagnostic Cable:VAS5051/1 or :VAS5051/3

WARNING:

During a test drive, the testing and measuring equipment must always be secured on the back seat.
These devices may be operated only by a passenger during a test drive.

-- Connect the connector of the Diagnosis Cable:VAS 5051/1 or :VAS 5051/3 to the Data Link Connector (DLC) -arrow-.

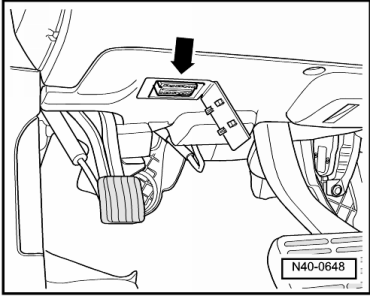

Fig 1: Identifying Diagnostic Cable VAS 5051/1 Connector Or VAS 5051/3 To Data Link Connector (DLC)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Switch on tester -arrow-.

Fig 2: Identifying Volkswagen Tester VAS 5051, On Switch

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The tester is operational when it displays a picture of a car.

-- Switch the ignition on.

-- Select Guided Fault Finding .

-- Select in succession:

Brand
Type
Model year
Version
Engine Code

-- Confirm data entered.

Wait until the tester has checked all control modules in vehicle.

-- Press GO TO and select "function/component selection".

-- Select "Suspension"

-- Select "Brake system"

-- Select "01 - OBD-capable system..." in the display.

Either

-- Select on display "Anti-lock brake system...".

-- Select on display "Electric Park/Handbrake"

-- Select "function" indicated on display.

Now, all possible functions of the anti-lock brake system (ABS) installed in the vehicle will be displayed.

-- Select desired function on display.
