Overview - Front Brakes, BREMBO 17"

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

After replacing brake pads, depress brake pedal firmly several times with vehicle stationary so that the brake pads are properly seated in their normal operating position.

Use the Brake Charger/Bleeder Unit:VAS5234 or the Extractor:VAG1869/4 to extract brake fluid from brake fluid reservoir.

Install the Brake Pedal Actuator:VAG1869/2 to relieve pressure before removing a brake caliper or disconnecting a brake hose.

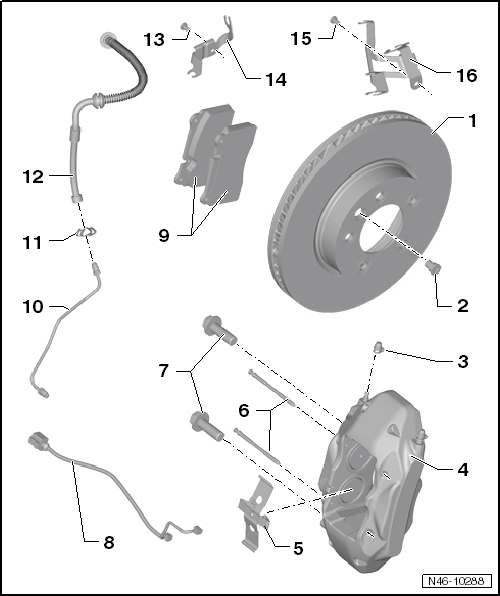

Fig 1: Front Brakes Assembly Overview, Brembo 17"

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Brake Rotor
- Internally vented brake rotor: 330 mm diameter
- Brake rotor thickness: 32 mm
- Wear limit: 30 mm
- Always replace on both axles.
- Left and right sides are different
- Remove the brake caliper before removal, do not disconnect brake line but remove the bracket -item ) OVERVIEW - FRONT BRAKES, BREMBO 17" - Upper Bracket and -item 16- ) OVERVIEW - FRONT BRAKES, BREMBO 17" - Lower Bracket.
Fitting Bolt
- 15 Nm
- Brake rotor to wheel hub
Dust Cap
- Install onto bleeder valve
- As a bracket for the brake pad wear display wire
Brake Caliper
- Do not detach the brake line when replacing the brake rotor.
- Removing and installing. Refer to BRAKE CALIPER, REMOVING AND INSTALLING .
- Servicing. Refer to OVERVIEW - BRAKE CALIPER, BREMBO 17" .
Spring
Brake Pad Pins
Hex Bolt
- 270 Nm
- Always replace if removed
Brake Pad Wear Display Wire
- Changed to one contact, inside
Brake Pads
- Thickness: 11 mm without backing plate
- Wear limit: 2 mm without backing plate
- With wear indicator
- When wear limit is reached (limit: approximately 4 mm) the warning lamp in instrument cluster will come on.
- Check the thickness. Refer to appropriate service information.
- Always replace on both axles.
- Removing and installing. Refer to BRAKE PADS, REMOVING AND INSTALLING .
Brake Line
- 14 Nm
- Do not detach the brake line when replacing the brake rotor.
Spring Clamp
Brake Hose
- 14 Nm
TORX^® Bolt
- 9 Nm
Upper Bracket
- Bolt to wheel bearing housing
Hex Socket Bolt
- 20 Nm
Lower Bracket
- Bolt to the wheel bearing housing
