Overview - Lane Assist
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

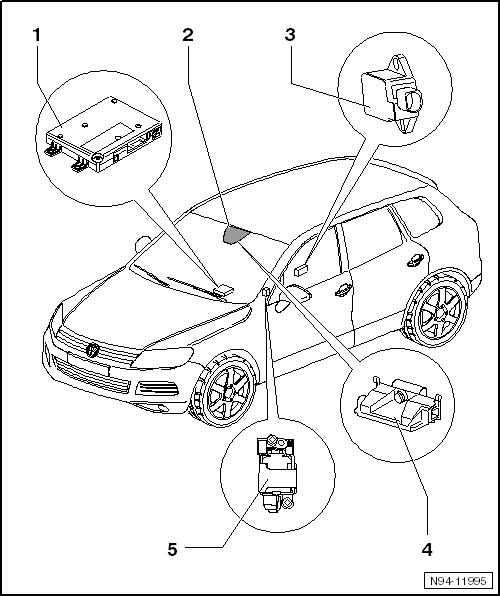

- Image Processing Control Module -J851-
- Component location: under the right front seat
- Removing and installing. Refer to Image Processing Control Module -J851-
- Directional Stabilization Assistance Windshield Defogger -Z67-
- Installed location: inside the mount for the interior rearview mirror
- Removing and installing. Refer to Directional Stabilization Assistance Windshield Defogger -Z67-, REMOVING AND INSTALLING
- Pitch Rate Sensor -G752-
- Component location: in the cross bar under the right rear seat
- Removing and installing. Refer to Pitch Rate Sensor -G752-
- Camera Control Module -J852-
- Installed location: inside the mount for the interior rearview mirror
- Removing and installing. Refer to Camera Control Module -J852-, REMOVING AND INSTALLING
- Calibrating. Refer to Camera Control Module -J852-, CALIBRATING .
- Coding. Refer to Camera Control Module -J852-, CODING .
- Steering Wheel Vibration Motor -V331-
- Component location: in the lowest steering wheel spoke
- Removing and installing. Refer to Steering Wheel Vibration Motor -V331-
