Service Position, Resetting
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

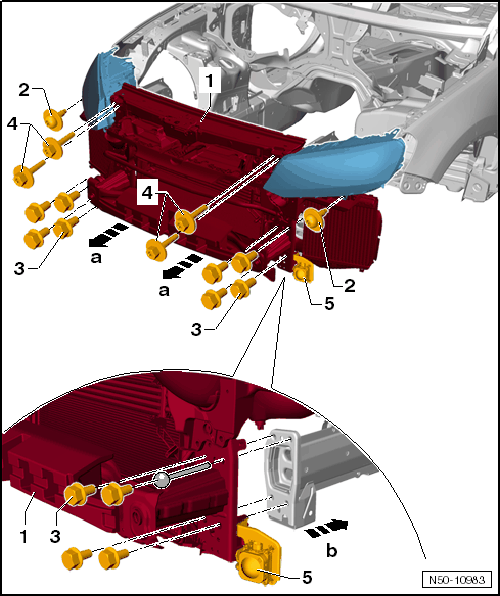

Fig 1: Identifying Attachments -1-, Bolts -2 To 4-, Lock Carrier, Guide Pins T10093 And Longitudinal Members -Arrow B-
-- Slide the lock carrier on the Guide Pins:T10093 onto the longitudinal members -arrow b-.
-- Install bolts -2, 3 and 4-.
-- Align the lock carrier and its attachments -1- on the longitudinal members and between the fenders. Refer to appropriate service information.
-- Tightening specification for bolts -2- : 8 Nm
-- Tightening specification for bolts -3- : 60 Nm
-- Tightening specification for bolts -4- : 8 Nm
Installation is performed in reverse order of the removal.
NOTE:
Information regarding the distance regulation control modules -5-. Refer to ADAPTIVE CRUISE CONTROL .
Make sure the charge air cooler pressure hoses are attached securely. Refer to COUPLING, LOCKING .
The hoses and lines must not be pinched.
