Coupling, Locking

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Make sure the clamp -2- is in the upper position.

-- Insert the pressure hose -3- into the coupling -1- in direction of -arrow-.

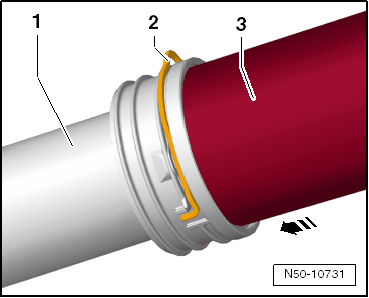

Fig 1: Attaching Pressure Hose Into Coupling

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the clamp -2- all the way down.

NOTE:

If the clip cannot be pushed all the way through, this means the pressure hose is not completely attached to the coupling.

Push the pressure hose again and lock the clamp.

Pull on the coupling to make sure it is secure.
