Lock Carrier With Attachments, Removing And Installing: Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

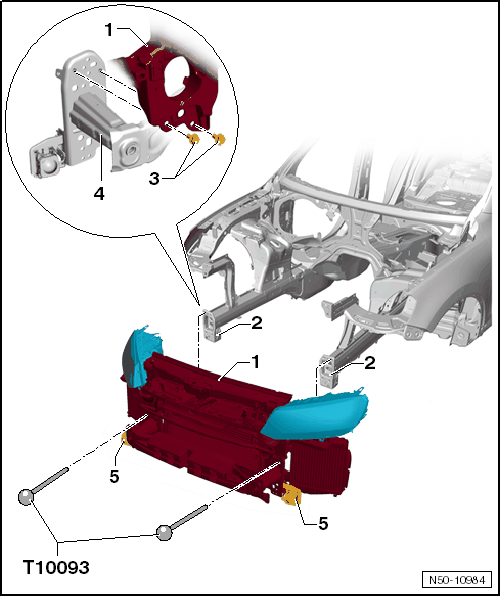

Fig 1: Identifying Guide Pins T10093, Lock Carrier -1-, Longitudinal Members -2-, Screw -3- And Crossmember -4-
If the lock carrier -1- was detached from the crossmember -4-, the bolts must first be tightened.
-- Tightening specification for bolts -3- : 20 Nm.
-- Attach the lock carrier -1- to the longitudinal members -2-.
-- Install the Lock Carrier Support Tool:3411 on the left and right sides.
-- Move the lock carrier out of its service position. Refer to SERVICE POSITION, RESETTING .
Installation is performed in reverse order of the removal.
- Make sure that all plug and hose connections are installed correctly during assembly.
NOTE:
Information regarding the distance regulation control modules -5-. Refer to ADAPTIVE CRUISE CONTROL and ADAPTIVE CRUISE CONTROL .
-- Align the lock carrier with the longitudinal members and between the fenders. Refer toappropriate service information.
