Overview - Front Fender
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

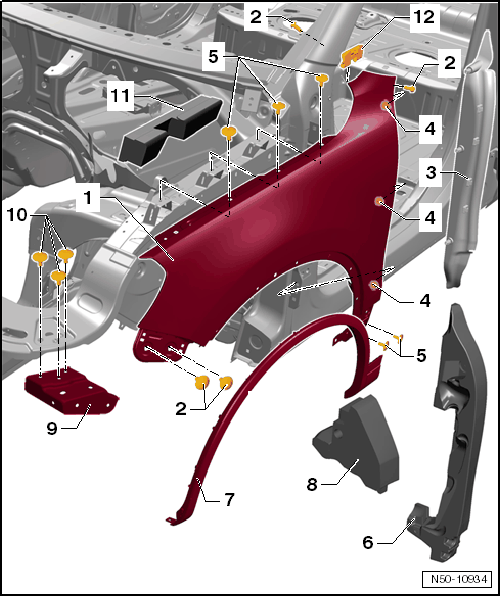

The illustration shows the left side. The right side is identical.
- Fender
- Removing. Refer to FRONT FENDER, REMOVING .
- Installing. Refer to FRONT FENDER, INSTALLING .
- Bolt
- 6 Nm
- Quantity: 2, A-pillar
- Quantity: 1; sill panel
- Quantity: 2, fender brace
- Fender Cover
- Engaged with fender. Refer to REMOVING FENDER COVER
- Hex Nut
- 6 Nm
- Quantity: 3
- Bolt
- 6 Nm
- Quantity: 2, sill panel
- Quantity: 3, fender connecting piece
- Insulation
- Placed in front of the cover
- Wheel Cover
- Foam Piece
- Inserted between the fender and the upper front longitudinal member
- Fender Brace
- Secured with bolts -10-
- Bolt
- 6 Nm
- For fender brace
- Quantity: 2
- Foam Piece
- Inserted between the fender and the upper front longitudinal member
