Transmission, Removing And Installing, Hybrid Vehicles: Installing: Notes

Install in reverse order of removal while Noting The Following:

Clean the ATF cooler and the ATF lines if the ATF is dirty or before installing a replacement transmission. Refer to ATF PIPES AND ATF COOLER, CLEANING .

Use a wire brush to clean the threads of the bolts that were installed with locking fluid. Then insert the bolts with Locking Fluid:AMV 185 101 A1  .

Use a thread cutter to clean all threaded holes containing self-locking bolts to remove any locking compound residue. Otherwise the bolts could shear the next time they are removed.

-- Always replace self-locking bolts and nuts.

-- Reconnect all electrical connections, lines, hoses, and connectors that were disconnected during removal.

-- Make sure the torque converter is inserted correctly inside the transmission before installing the transmission. Refer to TORQUE CONVERTER, INSTALLING .

-- Check installation dimension -a- Fig 1

Fig 1: Measuring Torque Converter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fig 2: Measuring Torque Converter

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Prior to installation of the transmission in the drive motor, ensure that there are alignment sleeves for centering the drive motor/transmission -arrows- or install them if necessary.

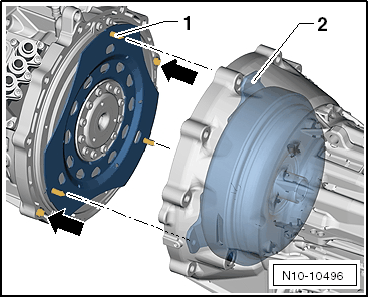

Fig 3: Alignment Sleeves -Arrows

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

When connecting the drive motor and transmission, ensure that the stud bolts of the drive plate are flush with the converter bushings.

-- When bolting the transmission to the drive motor, always make sure the converter is >>rotating freely<< and not jammed.
