Needle Bearing, Installing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

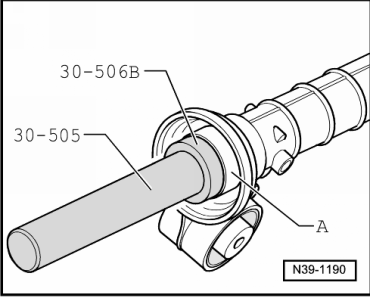

-- Install the needle bearing -A- all the way into the left flange shaft.
-- Install the flange shaft and the left seal. Refer to LEFT FLANGE SHAFT SEAL, REPLACING .
-- Install the front final drive. Refer to FRONT FINAL DRIVE, REMOVING AND INSTALLING .
-- Check the transmission fluid level in the front final drive. Refer to FRONT FINAL DRIVE, CHECKING TRANSMISSION FLUID .
