Right Flange Shaft Seal, Replacing, Final Drive 0C1: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Drive the new seal in all the way using the Seal Installer - Flange Shaft:T10259 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fill the space between the sealing and dust lip halfway with Sealing Grease:G 052 128 A1 .

-- Check the dust cap for damage and replace it if necessary before installing the flange shaft -arrow-. Refer to RIGHT FLANGE SHAFT DUST CAP, REPLACING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tension the flange shaft in a vice. Be sure to use Vise Protectors -B-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

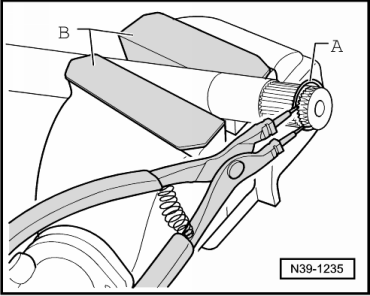

-- Remove the circlip -A- with Pliers.

-- Install the new locking ring into the groove in the flange shaft being careful not to overextend it.

-- Install the flange shaft using a Plastic Mallet.

-- Check the transmission fluid level in the front final drive. Refer to FRONT FINAL DRIVE, CHECKING TRANSMISSION FLUID .

-- Install the front final drive. Refer to FRONT FINAL DRIVE, REMOVING AND INSTALLING .
