Electric/Electronic Components And Component Locations, Differential Lock On Rear Final Drive: Notes
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

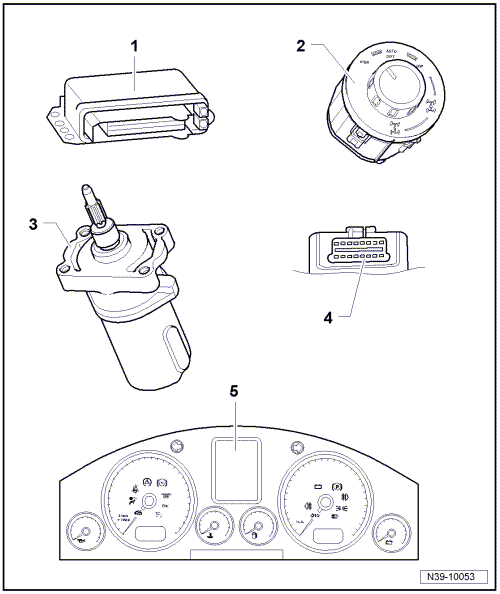

- Axle Differential Lock Control Module -J647-
- Removing and installing. Refer to Axle Differential Lock Control Module -J647-, REMOVING AND INSTALLING .
- Transfer Case Operating Unit -E473-
- Component location. Refer to Transfer Case Operating UnitE473 Component Location
- Removing and Installing. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .
- Allocation. Refer to the Parts Information.
- Differential Lock Motor -V304-
- Component location. Refer to Differential Lock MotorV304 Component Location
- Removing and installing. Refer to Differential Lock Motor -V304-, REMOVING AND INSTALLING .
- The following components are integrated in the Differential Lock Motor -V304- :
Motor Temperature Sensor -G407-
Differential Lock Position Sensor 1 -G460-
Differential Lock Position Sensor 2 -G461-
Brake for Differential Lock Motor --
- Data Link Connector (DLC)
- Component location. Refer to Data Link Connector (DLC)
- Multifunction Indicator Inside the Instrument Cluster
- Condition and information regarding the differential lock inside the rear final drive
