Transfer Case Operating UnitE473 Component Location

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

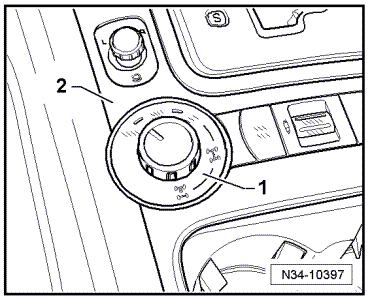

GWWN34-10397Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Transfer Case Operating Unit -E473- -1- is located in the shifter lever cover -2- in the center console.

Transfer Case Operating Unit -E473-, removing and installing. Refer to STORAGE COMPARTMENTS, COVERS AND TRIM .
