Location On Left Cylinder Bank 2

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

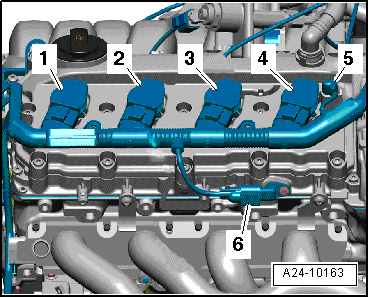

Fig 1: Disconnecting Camshaft Position (CMP) Sensor 4 G301 Electrical Harness Connector
GWWA24-10163Courtesy of AUDI OF AMERICA, LLC
  1. Ignition Coil 5 with Power Output Stage -N323-
  2. Ignition Coil 6 with Power Output Stage -N324-
  3. Ignition Coil 7 with Power Output Stage -N325-
  4. Ignition Coil 8 with Power Output Stage -N326-
  5. Camshaft Adjustment Valve 2 (exhaust) -N319-
  6. Camshaft position (CMP) sensor 4 -G301-
